About Goldenear

In the summer of 2010, Sandy Gross, co-founder of two of the most successful speaker lines in the history of the audio industry, announced the launch of a new loudspeaker company, GoldenEar Technology.

“Speaker design is what we’ve done all our lives; we love it and are really good at it.  In almost every case, the creative entrepreneurial founders of the industry’s major loudspeaker companies have left, and their companies are now owned by private equity firms or are part of large conglomerates. We wanted to bring back the combination of entrepreneurial spirit and passion for incredible sound which has always driven this business and helped to create the great speaker companies of the past.”

The GoldenEar Technology line embodies revolutionary engineering breakthroughs, while adhering to the standards of superb sonic performance, elegant styling and exceptional value that Sandy and his design partners have always used as their personal design benchmarks. GoldenEar’s recipe for success is simple: the best products offered only by the best specialty dealers and custom installers -those who share our enthusiasm for great sound and great value.

GoldenEar’s initial product are extremely focused and highly targeted to appeal to discerning buyers who are looking for something more exciting and clearly more desirable than homogenized, mass-market products that have overtaken the speaker market..

Initial response confirms that GoldenEar, Gross’s third company, is clearly destined for greatness.  Preliminary press comment has been extremely enthusiastic. Darryl Wilkinson of Home Theater Magazine writes, ”What we saw was elegant, affordable and had all the makings of another blockbuster line.” In Sound & Vision Magazine, whose reviewers have often praised the fruits of Sandy’s “golden ears,” Al Griffin wrote, “Something big is in the works.” He was clearly correct - as is evident from all the reviews and awards the GoldenEar products have received since their introduction.

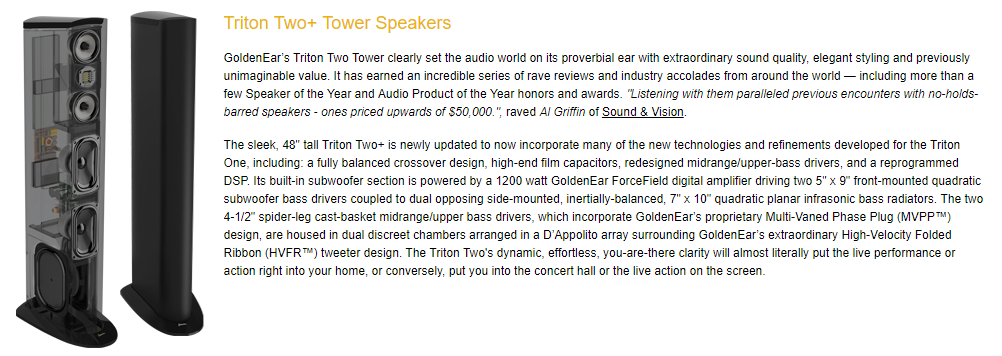

Triton Two Tower Overview

The sleek 48” tall Triton Two (left) is a high-performance loudspeaker with a built-in powered subwoofer. The Triton Two Tower is engineered for superb performance in both high quality two channel stereo systems as well as in multi-channel home theater and music systems. The sleek, elegantly curved and tapered design is not only gorgeous but is important from a performance perspective as well.

The subwoofer section is powered by a 1200 watt GoldenEar designed ForceField Digital Amplifier. The amplifier’s DSP design not only yields extremely linear and low distortion response, but also dynamically controls operating parameters for optimum performance. The amp drives two 5”x 9” front-mounted quadratic subwoofer bass drivers which are coupled to dual side-mounted 7”x10” quadratic planar infrasonic bass radiators. The result is awe-inspiring bass, which delivers both musical subtlety as well as room-shaking authority.

There are two cast-basket upper bass/midrange drivers, which incorporate GoldenEar’s proprietary Multi-Vaned Phase Plug (MVPP™) as well as a computer optimized cone design. They are arranged in a D’Appolito array surrounding the tweeter, an extraordinary new High-Velocity Folded Ribbon (HVFR™) design. The HVFR tweeter propagates sound waves and moves the air by squeezing it with its accordion-like pleated diaphragm, rather thanpushing it as conventional drivers do. With its sleek, narrow 5.25” wide baffle, the Triton Two’s sophisticated look not only blends with any décor, but also helps the speaker create truly magnificent 3D imaging with tremendous depth, height and width that extends well beyond the loudspeakers themselves.

The Triton Two Tower is finished with an elegant black designer cloth and piano-black base.

Triton Three Tower Overview

Triton Three Loudspeaker Pair Cutaway

GoldenEar’s Triton Two Tower clearly set the audio world on its proverbial ear with extraordinary sound quality, elegant styling and previously unimaginable value. It has earned an incredible series of rave reviews and industry accolades from around the world — including more than a few Speaker and Audio Product of the Year honors and awards. Now we are adding a spectacular followup, the Triton Three, which incorporates the same advanced technologies and delivers state-of- the-art performance remarkably similar to its big brother.

The Triton Three is literally a smaller version of the award-winning Triton Two. It is the perfect solution for listeners looking for a more compact loudspeaker that offers equally superb performance for both high-quality two-channel systems as well as in multi-channel home theater and music systems when paired with our perfectly-matched SuperSat 3 and SuperSat 50C. Its sleek, elegantly curved and tapered design mirrors the award winning styling of the Triton Two with its beautiful marriage of piano-gloss black and designer-fabric-covered surfaces.

Like the Two, the Triton Three incorporates the built-in powered subwoofer technology first pioneered by GoldenEar principals Sandy Gross and Don Givogue. In this case, there is an integral 800-watt digital/DSP controlled power amp driving an active front-mounted long-throw 5" x 9" quadratic subwoofer driver. This is coupled to two opposing, inertially balanced 6.75" x 8" quadratic planar infrasonic passive radiators which are located on the sides, near the floor, in order to take full advantage of boundary coupling. There is one of the same 4.5" high-definition cast basket MVPP™ drivers as used in the Two, along with the same GoldenEar signature High Velocity Folded Ribbon (HVFR™) tweeter.

Performance-wise, the Triton Three delivers the same boxless three-dimensional imaging as the Triton Two, which reviewers have hailed as “mystical”, “magical” — and, best summed up by the dramatic, “had us believing that the entire surface of the front wall was covered with speakers.” Likewise, the powerful, deep subwoofer bass blends perfectly with the silky smooth, utterly transparent midrange and high frequencies, putting many dramatically more expensive speakers to shame.

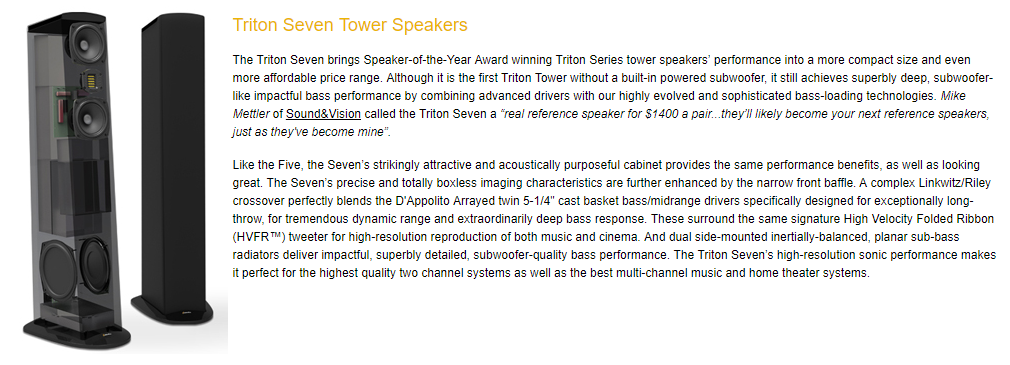

Triton Seven Tower Overview

The new Triton Seven brings Speaker-of-the-Year Award winning Triton Series performance into a more compact size and even more affordable price range. GoldenEar’s Triton Towers have set new performance and value standards all around the world. The new Triton Seven follows in this auspicious tradition. Although it is the first Triton Tower without a built-in powered subwoofer, it still achieves superbly deep, subwoofer-like impactful bass performance by combining advanced technology drivers with our highly evolved and sophisticated bass-loading technologies.

The Seven’s unique cabinet shape is both acoustically purposeful as well as strikingly attractive. Its stylish rearward rake, in conjunction with the complex crossover, both aligns the driver array precisely for a coherent wave-launch directed at ear level at the listening position, as well as results in non-parallel front and rear baffles for better control of internal standing waves. And, of course, the non-parallel side cabinet walls and slanted top provide the same acoustical performance benefit, as well as looking great. The Seven’s precise and totally boxless imaging characteristics are further enhanced by the narrow front baffle, as well as the diffractionless designer grille cloth sock which adds additional sheer damping to the cabinet. In addition, the beautifully sculpted piano-gloss black base adds significantly to the Seven’s dynamic stability.

Like the signature Triton Two, the Seven combines a D’Appolito array of bass midrange drivers, which surround the same, now famous, High Velocity Folded Ribbon Driver (HVFR™), used in both the Triton Two and Three. The HVFR™ tweeter functions by pressurizing the air, rather than pushing and pulling it, for much better impedance matching with the air. This results in superb extension combined with a silky smooth non-fatiguing character, which is both unique and extraordinary. The spiderleg cast-basket 5.25” bass/midrange drivers, newly developed at our Arnprior, Canada engineering facility, have been specifically designed for exceptionally long-throw for tremendous dynamic range and extraordinarily deep bass response.

In addition, their precisely curved cone combined with a specially formulated polypropylene cone material and unique apical glue bonding technique delivers superb high-definition midrange clarity and presence. Like the two larger Tritons, the Seven incorporates 2 side-mounted sub-bass radiators that are located on either side of the cabinet down near the floor for optimum coupling to the room. The Triton Seven’s high-resolution sonic performance makes it perfect for the highest quality two channel systems as well as the best multi-channel music and home theater systems.



SuperCenter Overview



SuperCenter Series

The SuperCenter X and SuperCenter XL are ultra-high performance center channel speakers appropriate for the highest quality home theater systems. They are designed to perfectly complement and match our Triton Towers and Aon Bookshelf loudspeakers, both sonically and cosmetically. Their sophisticated industrial design is both attractive and functional, both minimizing their apparent size as well as enhancing their acoustic performance. Both new center channel models incorporate a D’Appolito Array of two newly developed long-throw 5-1/4˝ bass/midrange drivers surrounding one of our signature High Velocity Folded Ribbon (HVFR) tweeters. The 5-1/4˝ drivers incorporate spiderleg cast baskets for rigidity and minimal internal reflection, as well as our unique multi-vaned phase plugs (MVPP), to minimize cross-apex wave propagation interference. Both also utilize top-mounted pressure-coupled quadratic planar low frequency radiators that both extend the bass response as well as provide the bass/midrange drivers with ideal acoustic loading and damping. Only 1˝ of clearance is required above the bass radiators.

Sonically, the new centers offer the same lifelike, highly detailed, high-resolution, smooth, open, boxless sound quality that our SuperSat centers are famous for, but with additional low frequency extension for greater dynamic range and impact.

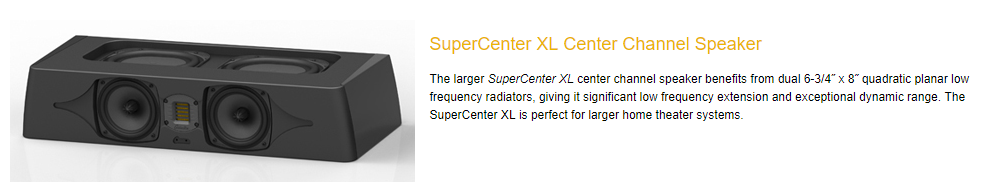

SuperCenter XL

SuperCenter XL

The larger SuperCenter XL benefits from dual 6-3/4˝ x 8˝ quadratic planar low frequency radiators, giving it significant low frequency extension and exceptional dynamic range. The SuperCenter XL is perfect for even the largest home theater systems.

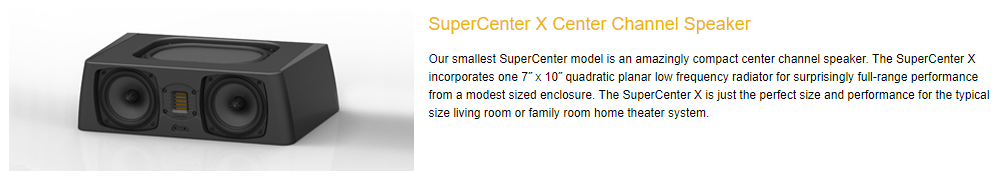

SuperCenter X

SuperCenter X

The smaller and amazingly compact SuperCenter X incorporates one 7˝ x 10˝ quadratic planar low frequency radiator for surprisingly full-range performance from a modest sized enclosure. The Super Center X is just the perfect size and performance for the typical size living room or family room home theater system.

SuperSat 60

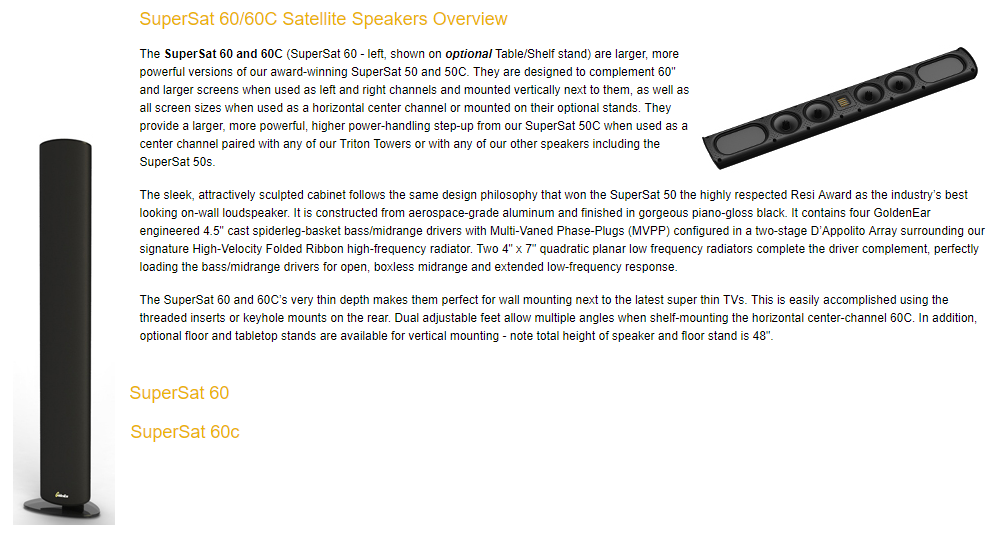

SuperSat 60 Overview



The SuperSat 60 and 60C are larger, more powerful versions of our award-winning SuperSat 50 and 50C. They are designed to complement 60" and larger screens when used as left and right channels and mounted vertically next to them, as well as all screen sizes when used as a horizontal center channel or mounted on their optional stands. They provide a larger, more powerful, higher power-handling step-up from our SuperSat 50C when used as a center channel paired with any of our Triton Towers or with any of our other speakers including the SuperSat 50s.

The sleek, attractively sculpted cabinet follows the same design philosophy that won the SuperSat 50 the highly respected Resi Award as the industry’s best looking on-wall loudspeaker. It is constructed from aerospace-grade aluminum and finished in gorgeous piano-gloss black. It contains four GoldenEar engineered 4.5" cast spiderleg-basket bass/midrange drivers with Multi-Vaned Phase-Plugs (MVPP) configured in a two-stage D’Appolito Array surrounding our signature High-Velocity Folded Ribbon high-frequency radiator. Two 4" x 7" quadratic planar low frequency radiators complete the driver complement, perfectly loading the bass/midrange drivers for open, boxless midrange and extended low-frequency response.

The SuperSat 60 and 60C’s very thin depth makes them perfect for wall mounting next to the latest super thin TVs. This is easily accomplished using the threaded inserts or keyhole mounts on the rear. Dual adjustable feet allow multiple angles when shelf-mounting the horizontal center-channel 60C. In addition, optional floor and tabletop stands are available for vertical mounting.

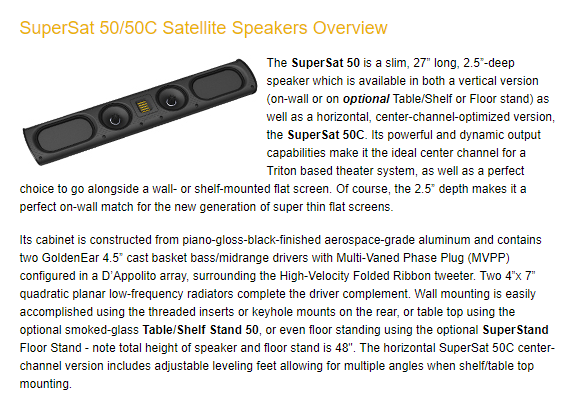

SuperSat 50 Overview



The SuperSat 50 is a slim, 27” long, 2.5”-deep speaker which is available in both a vertical version (SuperSat 50 - right, shown on optional Table/Shelf stand) as well as a horizontal, center-channel-optimized version, the SuperSat 50C. Its powerful and dynamic output capabilities make it the ideal center channel for a Triton based theater system, as well as a perfect choice to go alongside a wall- or shelf-mounted flat screen.  Of course, the 2.5” depth makes it a perfect on-wall match for the new generation of super thin flat screens.

Its cabinet is constructed from piano-gloss-black-finished aerospace-grade aluminum and contains two GoldenEar 4.5” cast basket bass/midrange drivers with MVPP configured in a D’Appolito array, surrounding the High-Velocity Folded Ribbon tweeter. Two 4”x 7” quadratic planar low-frequency radiators complete the driver complement. Wall mounting is easily accomplished using the threaded inserts or keyhole mounts on the rear, or table top using the optional smoked-glass Table/Shelf Stand 50 (shown, right), or even floor standing using the optional SuperStand 50 Floor Stand - note total height of speaker and floor stand is 48". The horizontal SuperSat 50C center-channel version includes adjustable leveling feet allowing for multiple angles when shelf/table top mounting.

SuperSat 50

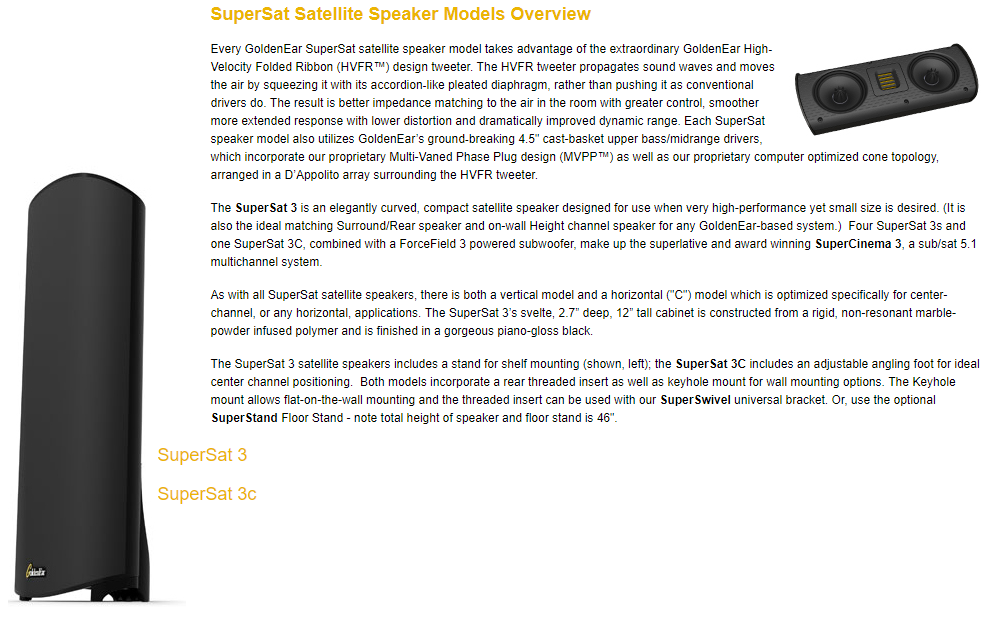

SuperSat 3

SuperSat 3 Overview



The SuperSat 3 is an elegantly curved, compact satellite speaker designed for use when very high-performance yet small size is desired. It is also the ideal matching rear or side surround speaker for a system based on the Triton Two or SuperSat 50.  In addition, four SuperSat 3’s and one SuperSat 3C, combined with a ForceField 3 powered subwoofer, make up the superlative and award winning SuperCinema 3 sub/sat multichannel system.

As with the SuperSat 50, there is both a vertical model and a horizontal model optimized specifically for center-channel applications. The SuperSat 3’s svelte, 2.7” deep, 12” tall cabinet is constructed from a rigid, non-resonant marble-powder infused polymer and is finished in a gorgeous piano-gloss black.

The SuperSat 3 models incorporate two GoldenEar MVPP 4.5” cast-basket bass/midrange drivers positioned on either side of the HVFR tweeter. The SuperSat 3 includes a stand for shelf mounting (shown, left); the SuperSat 3C includes an adjustable angling foot for ideal center channel positioning.  Both models incorporate a threaded insert as well as a keyhole mount for wall mounting options. Or, use the optional SuperStand 3 Floor Stand - note total height of speaker and stand is 46".

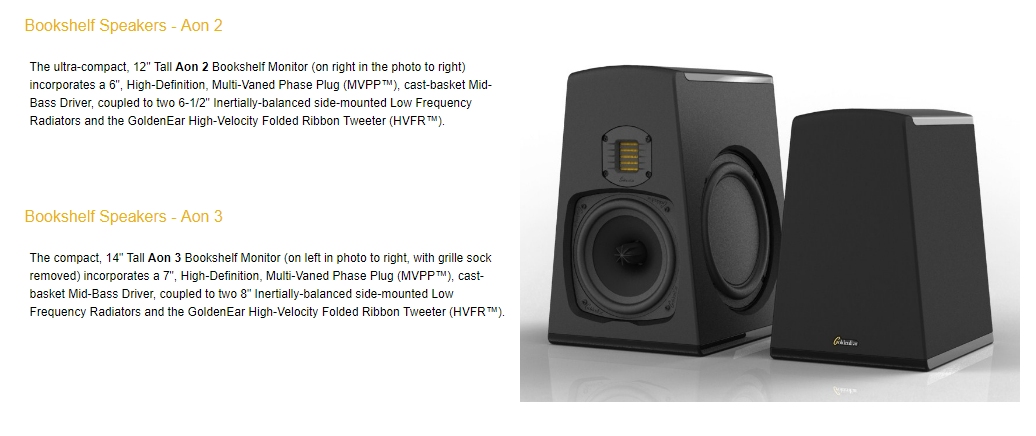

Aon 2 and Aon 3 Ultra-High-Performance Compact Bookshelf Monitors

GoldenEar Aon 12 Bookshelf speaker

The Aon 2 and 3 are exceptionally compact, ultra-high-performance bookshelf speakers that were originally developed for use as nearfield monitors in professional mixing applications. The design goal was to produce modestly-sized shelf or stand-mountable speakers that would achieve accurate high-definition sonic reproduction, with superb three-dimensional imaging, comparable to that achieved by GoldenEar’s award-winningTritonTwoTowers. Although they don’t have quite the awe-inspiring bass of the floor-standing Tritons, great care has been taken, and extensive technology has been incorporated, to ensure that the Aons can deliver a remarkably satisfying listening experience without the need for a separate subwoofer.

Both Aon models incorporate GoldenEar-designed cast-basket bass/midrange drivers with technology derived from the midrange units developed for the Tritons. In addition, they both use the same extraordinary and costly High Velocity Folded Ribbon (HVFR™) high frequency radiator used in the Tritons. Lastly, each Aon model utilizes two side-mounted planar low-frequency radiators in a dynamically balanced configuration in order to properly load the bass/midrange drivers for an open, box-less midrange, while also contributing to the Aons’ remarkably extended bass for such small enclosures.

The Aons are of a truncated pyramidal construction, which results in significant performance advantages due to the non-parallel cabinet walls and the reduced baffle area around the tweeter. Aesthetically, the sleek, attractive pyramid-inspired shape combined with appealing design details including piano-gloss black end-caps, results in beautiful speakers that are both elegant and distinctive.

Aon 2

The ultra-compact, 12" Tall Aon 2 Bookshelf Monitor (on right in the photo to right) incorporates a 6", High-Definition, Multi-Vaned Phase Plug (MVPP™), cast-basket Mid-Bass Driver, coupled to two 6-1/2" Inertially-balanced side-mounted Low Frequency Radiators and the GoldenEar High-Velocity Folded Ribbon Tweeter (HVFR™).

Aon 3

The compact, 14" Tall Aon 3 Bookshelf Monitor (on left in photo to right, with grille sock removed) incorporates a 7", High-Definition, Multi-Vaned Phase Plug (MVPP™), cast-basket Mid-Bass Driver, coupled to two 8" Inertially-balanced side-mounted Low Frequency Radiators and the GoldenEar High-Velocity Folded Ribbon Tweeter (HVFR™).

GoldenEar Aon Bookshelf 2 & 3

ForceField Subwoofers Overview



ForceField Subwoofers

The ForceField Subwoofers’ unique and attractive cabinet shape, with its non-parallel cabinet walls (the top is narrower than the bottom when viewed from the front), helps the ForceField subs achieve extraordinarily deep and tuneful bass that is ideal for music and movies. Their cutting-edge amplifier design employs state-of-the-art DSP control for frequency shaping so the subs produce accurate, consistent and musical bass performance.

Let's take a look at the ForceField subwoofers to see what makes them special. We'll start with two very common sub design concepts and then we'll delve into GoldenEar's unique and better solutions. Many of today's subs fall into either the ultra-compact high-output category, or the (larger) high performance, extended response, high-output category. These two design types tend to offer different performance benefits, the ultra compact having the ability to play extremely loud, but over a narrower bandwidth and the large subs having this high output plus more extended response.

GoldenEar's engineering team set out to accomplish the best of both worlds with the new ForceField subwoofers: small size, yet with the smooth & wide response of a larger sub. There's no sleight of hand, just great engineering - all ForceField subs share the same technologies, here is a list of their features. Read through these and then take a good demo disc into your GoldenEar dealer's sound room and listen for yourself.

  • Custom-designed high-output drivers with very large motor assemblies. These drivers handle massive power, have very long excursions, and have ultra-low distortion.

  • Rigid cabinets with non-parallel sides to minimize standing waves and distortion. The drivers are front firing in all of our subwoofers for optimal performance. The cabinets' possess a unique and understated shape and style that matches well with any décor.

  • The driver's response is enhanced with a carefully tuned, down-firing, quadratic-shaped passive radiator (no noisy ports on ForceField subs). The quadratic shape allows the radiators to use maximum surface area on the bottom of the cabinets and gets even greater output from the slot-loading that results from the subwoofers' interface with the floor (see next point).

  • The soft, energy-absorbing feet provided with every ForceField sub serve a number of functions. First, they hold the sub the correct distance off the floor so the passive radiator slot-loads with it for significantly increased output at the lowest frequencies. Second, the soft feet keep the sub from dancing around on the floor.

  • ForceField subwoofer amplifiers are designed in-house by GoldenEar engineering, so each is the perfect amp to power its specific subwoofer model. In addition the amps all have powerful DSP sections to optimize frequency response, minimize distortion and prevent damage from overdriving. These amplifiers are all low distortion and extraordinarily powerful (up to 1500 watts on the ForceField 5) for reproducing seriously high-output AND low bass.

  • ForceField subs all have speaker-level inputs and outputs (with a high pass crossover on the outputs) as well as a direct LFE input, too.

We realize there is a huge selection of subs on the market - but by incorporating the latest technology, and not a rehash of the last five years', we know ForceField subs offer a real value. There is nothing available at these price points that will play lower or louder, with less noise and distortion, than the ForceField subs. Our ForceField subs are almost as small as many of the ultra compact models, yet they outperform many of the big boys. Listen for yourself and be amazed! And these great subs start at just $499.

Finish on the subwoofers is an attractive matte black.

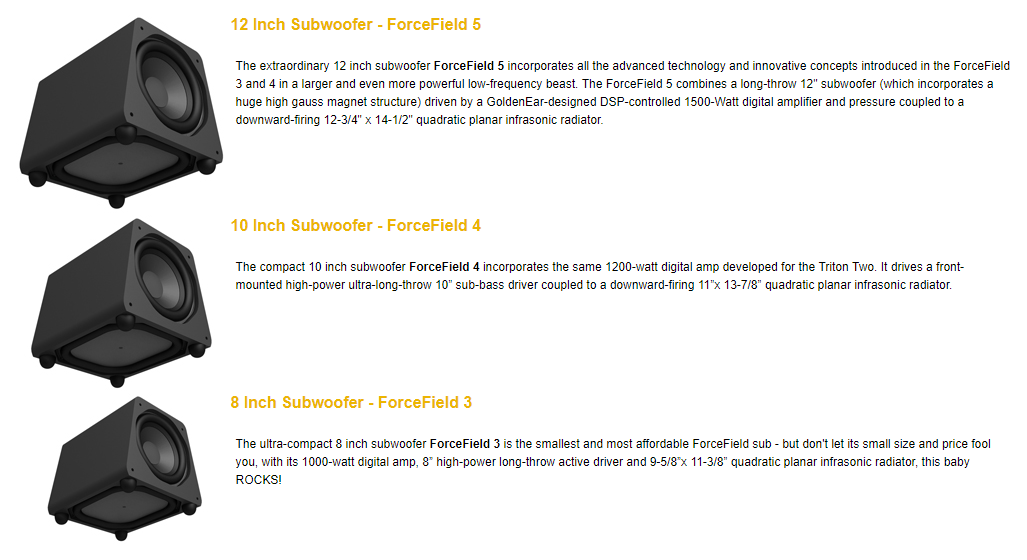

ForceField 5 Subwoofer

ForceField 5

The extraordinary ForceField 5 incorporates all the advanced technology and innovative concepts introduced in the ForceField 3 and 4 in a larger and even more powerful low-frequency beast. The ForceField 5 combines a long-throw 12" subwoofer (which incorporates a huge high gauss magnet structure) driven by a GoldenEar-designed DSP-controlled 1500-Watt digital amplifier and pressure coupled to a downward-firing 12-3/4" x 14-1/2" quadratic planar infrasonic radiator.

ForceField 4 Subwoofer

ForceField 4

The compact ForceField 4 incorporates the same 1200-watt digital amp developed for the Triton Two. It drives a front-mounted high-power ultra-long-throw 10” sub-bass driver coupled to a downward-firing 11”x 13-7/8” quadratic planar infrasonic radiator.

ForceField 3 Subwoofer

ForceField 3

The ultra-compact ForceField 3 is the smallest and most affordable ForceField sub - but don't let its small size and price full you, with its 1000-watt digital amp, 8” high-power long-throw active driver and 9-5/8”x 11-3/8” quadratic planar infrasonic radiator, this baby ROCKS!

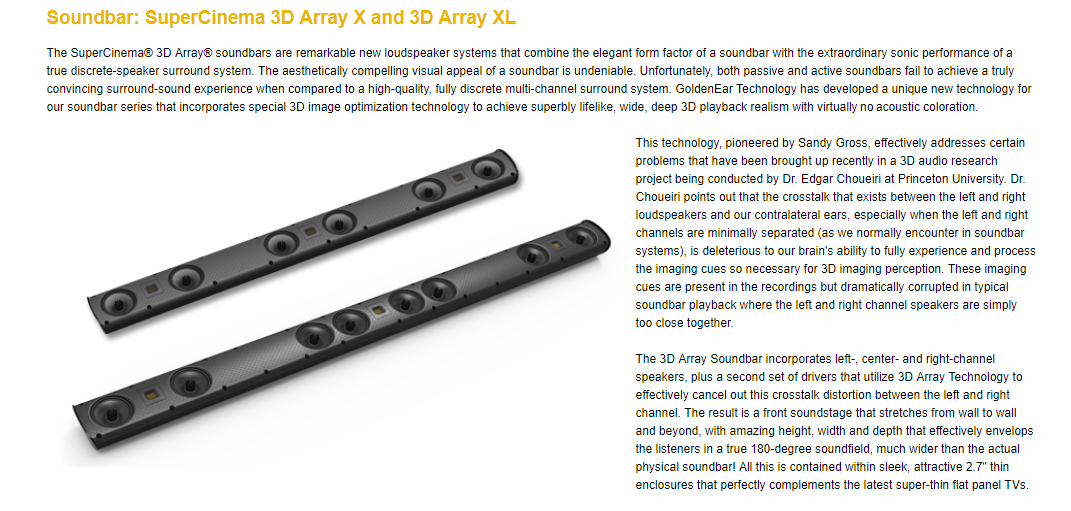

SuperCinema 3D Array Overview



The SuperCinema® 3D Array™ is a remarkable new loudspeaker system that combines the elegant form factor of a soundbar with the extraordinary sonic performance of a true surround system. The aesthetically compelling visual appeal of a soundbar is undeniable. Unfortunately, both passive and active soundbars fail to achieve a truly convincing surround-sound experience when compared to a high-quality, fully discrete 5.1-channel surround system. GoldenEar Technology has developed a unique new 3-channel front soundstage soundbar that incorporates special 3D image optimization technology to achieve superbly lifelike, wide, deep 3D front stage playback realism with virtually no acoustic coloration. This technology, pioneered by Sandy Gross, effectively addresses certain problems that have been brought up recently in a 3D audio research project being conducted by Dr. Edgar Choueiri atPrincetonUniversity. Dr. Choueiri points out that the crosstalk that exists between the left and right loudspeakers and our contralateral ears, especially when the left and right channels are minimally separated as we normally encounter in soundbar systems, is deleterious to our ability to fully experience and process the imaging cues so necessary for 3D imaging perception. These imaging cues are present in the recordings but dramatically corrupted in typical soundbar playback.



The SuperCinema 3D Array (SC3DA) incorporates left-, center- and right-channel speakers, plus a second set of drivers that utilize 3D Array Technology to effectively cancel out this crosstalk distortion between the left and right channel. The result is a front soundstage that stretches from wall to wall and beyond, with amazing height, width and depth that effectively envelops the listeners in a true 180-degree soundfield, even though the soundbar is only 49" wide! All this is contained within a sleek, attractive 2.7" thin enclosure that perfectly complements the latest super-thin flat panel TVs. Although excellent performance is achieved even without surround speakers, when the SC3DA is combined with a pair of rear surrounds (like our SuperSat 3s) and a powered GoldenEar ForceField 3, 4 or 5 Subwoofer, the result is a mind-boggling true surround-sound experience that rivals discrete 6-speaker systems. In fact, it actually surpasses all but the very best in the ability to dramatically recreate the realism of a live performance or a cinematic event.

The SC3DA incorporates six of GoldenEar Technology’s spider-leg cast basket 4.5" bass-midrange drivers with our unique Multi-Vaned Phase Plugs (MVPP™). In addition, there are 3 of GoldenEar’s extraordinary High-Velocity Folded Ribbon tweeters (HVFR™). The Array is an ideal match for 48"-and-up TVs. The beautiful piano-gloss-black-finished cabinet is aerospace-grade extruded aluminum with a marble-powder-infused baffle and end-caps. It can be easily wall-mounted using its keyhole mounts or threaded brass inserts, or shelf-mounted using its adjustable rear supports.







Invisa Series Overview

GoldenEar Invisa Series loudspeakers are engineered to deliver superb state-of-the-art sound quality from in-wall/in-ceiling speakers that are designed to blend perfectly with their surroundings and virtually disappear. GoldenEar’s initial introduction consists of the Invisa 525, Invisa 650 and the Invisa Home Theater Reference (HTR) 7000. All three models incorporate a magnetically attached grill-covered/hidden flange construction that helps to make them virtually invisible.

A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format. All three models incorporate a High Velocity Folded Ribbon (HVFR) high-frequency radiator similar to the unit used in GoldenEar’s award-winning Triton Two Tower. The Invisa 525 and Invisa 650 utilize a one-piece driver/frame/flange construction in order to minimize their footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral part. The Invisa HTR 7000 incorporates our Focus-Field™ Technology with a cast-basket 7" bass/midrange driver and HVFR tweeter that are angled under the grille for optimum performance as a main speaker in a high-quality in-ceiling home theater and music system. All three systems have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality.

Invisa 525 and 650

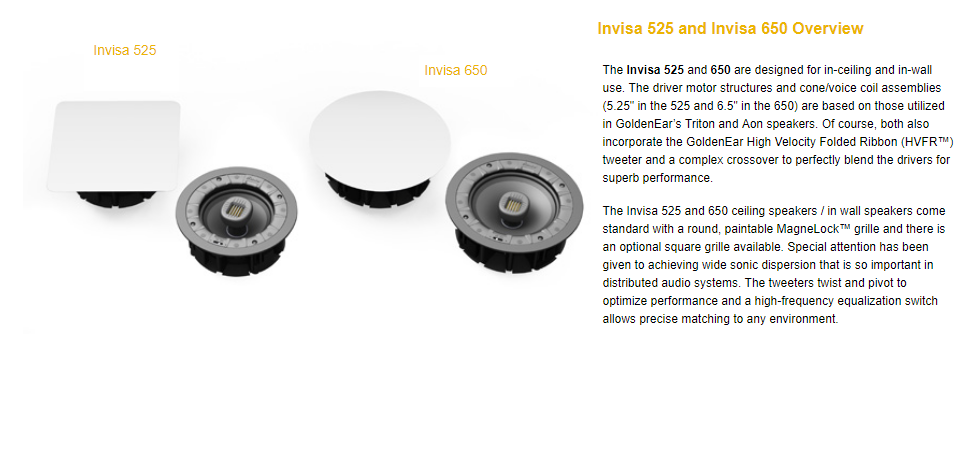

Invisa 525 and Invisa 650 Overview

The 525 and 650 are designed for in-ceiling and in-wall use. Solidly constructed of a marble-infused polymer, the unitized structure actually has the extraordinary high-definition wide-dispersion driver built as an integral part of the frame/flange construction in order to minimize their footprint. The driver motor structures and cone/voice coil assemblies (5.25”in the 525 and 6.5” in the 650) are based on those utilized in GoldenEar’s Tritons and Aon speakers. Of course, both also incorporate the GoldenEar High Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance.



The 525s and 650s come standard with a round, paintable MagneLock™ grille and there is an optional square grille available. Special attention has been given to achieving wide sonic dispersion that is so important in distributed audio systems. The tweeters twist and pivot to optimize performance and a high-frequency equalization switch allows precise matching to any environment.

Invisa HTR 7000 Overview

The Invisa Home Theater Reference 7000 is designed for use as a ceiling-mounted main front stage left, right, or center speaker in high-quality home theater or music systems,as well as for use as a side or rear surround speaker. It has a flat, round, magnetically attached micro-perf grille that covers the mounting flange for an attractive, nearly “invisible” look. The drivers are mounted at precisely calculated angles so that they face the normal listening position for exceptional imaging, superior frequency response, remarkable clarity and precise focus. The driver complement combines the same superb 7" high-definition cast-basket driver used in the acclaimed Aon 3, with one of GoldenEar’s signature technology High Velocity Folded Ribbon tweeters. A complex crossover network, with a high-frequency equalization switch, assures perfect blending. In order to achieve open, boxless, three-dimensional imaging that appears to come from across the front wall rather than the ceiling, great care has been taken to minimize deleterious diffraction effects as well as to optimize wave-launch into the room. This is achieved by utilizing and combining our FocusField™ Technology with a unique Non-Periodic Waveform (NPW) Diffraction Control and Wave-Launch construction.

Invisa HTR 7000

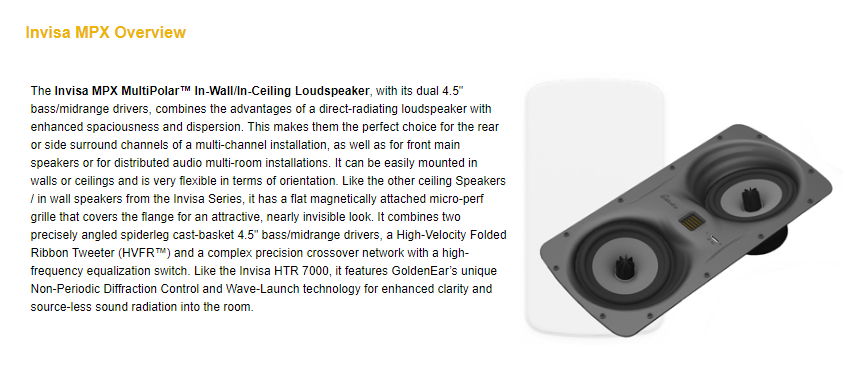

Invisa MPX

Invisa MPX Overview

The Invisa MPX MultiPolar In-Wall/In-Ceiling Loudspeaker combines the advantages of a direct-radiating loudspeaker with the enhanced spaciousness and dispersion of a bipolar speaker. This makes them the perfect choice for the rear or side surround channels of a multi-channel installation, as well as for front main speakers or for distributed audio multi-room installations. It can be easily mounted in walls or ceilings and is very flexible in terms of orientation.  Like the other Invisa Series speakers, it has a flat magnetically attached micro-perf grille that covers the flange for an attractive, nearly invisible look. It combines two precisely angled spiderleg cast-basket 5" bass/midrange drivers, a High-Velocity Folded Ribbon Tweeter (HVFR™) and a complex precision crossover network with a high-frequency equalization switch. Like the Invisa HTR 7000, it features GoldenEar’s unique Non-Periodic Diffraction Control and Wave-Launch technology for enhanced clarity and source-less sound radiation into the room.
